Manage scorecards

Define scorecards

Port offers a variety of ways to create, edit and delete scorecards:

UI

You can create, edit, or delete scorecards either from the catalog page or the Data model page.

From the catalog page

Whether you create, edit, or delete a scorecard, follow the next steps, then proceed with the relevant section below.

1. Navigate to the Software Catalog page.

2. Go to a Scorecard catalog page in your catalog section.

   Creating a scorecards catalog page

   If you don't have a scorecards catalog page, you can create one. To learn more, refer to the catalog page documentation.

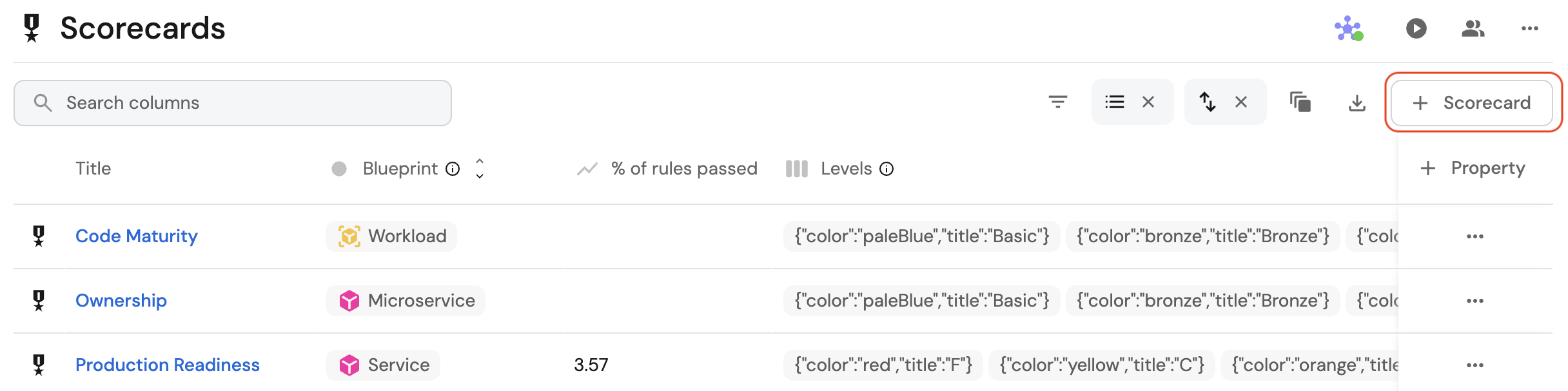

To create a new scorecard:

1. Click the + Scorecard button in the top right corner of the page.



2. In the Basic Details tab, specify the scorecard's basic details:

   • Title - The scorecard's title.
   • Identifier - The scorecard's unique identifier (must be unique among all scorecards).
   • Blueprint - Select the blueprint you want to add the scorecard to.
   • Filter - Filter which entities the scorecard applies to.

3. In the Rules tab, define the scorecard's rules:

   • Add or remove levels, as well as edit their names and colors.
   • Add rule elements to each level:
     • Title - The rule's title.
     • Identifier - The rule's identifier.
     • Description - The rule's description.
     • Conditions - The rule's conditions.

4. Click Save to create the scorecard.

To edit an existing scorecard:

1. Click on the ... button in line that represents your scorecard in the table, then choose Edit.



2. Edit the scorecard.

3. Click Save to apply your changes.

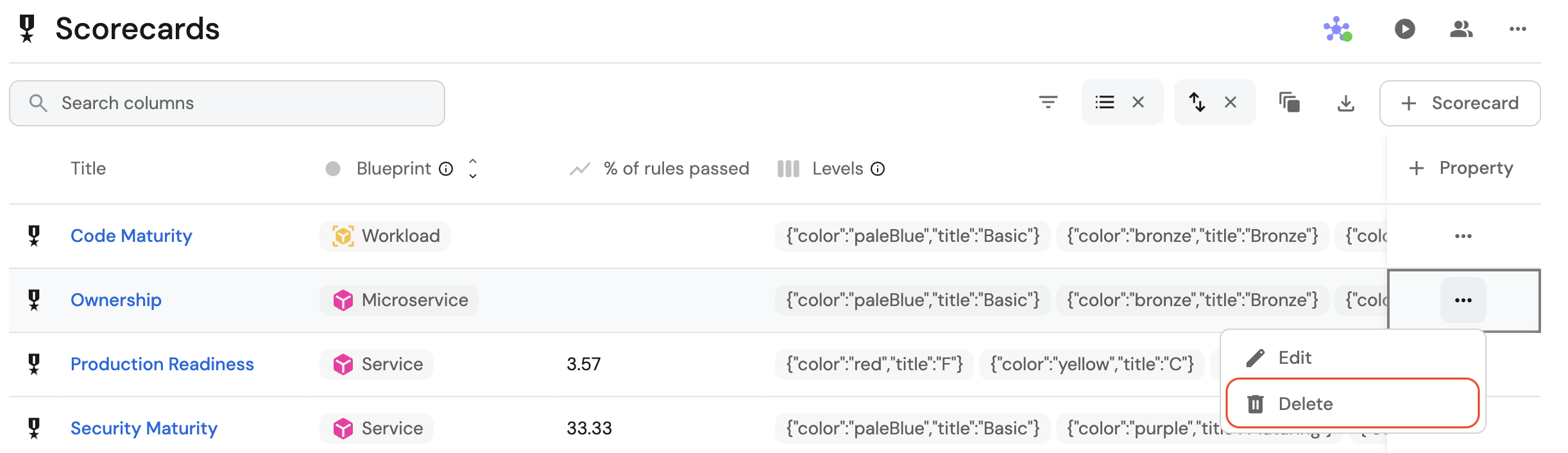

To delete a scorecard:

Irreversible delete

A Scorecard cannot be restored after deletion!

1. Click on the ... button in line that represents your scorecard in the table, then choose Delete.



2. Confirm the deletion in the pop-up window.

From the Data model page

Whether you create, edit, or delete a scorecard, follow the next steps, then proceed with the relevant section below.

1. Go to the Data model page of your portal.

2. Expand the relevant blueprint, and click on the Scorecards tab.

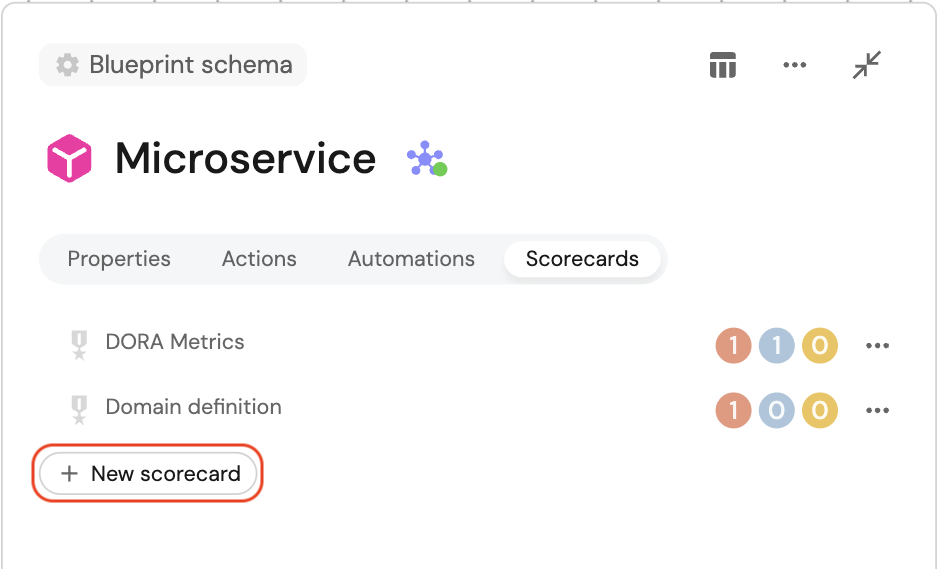

To create a new scorecard:

1. Click on the + New scorecard button.



2. In the Basic Details tab, specify the scorecard's basic details:

   • Title - The scorecard's title.
   • Identifier - The scorecard's unique identifier (must be unique among all scorecards).
   • Blueprint - This field will already be preselected and non-editable, set to the blueprint you expanded.
   • Filter - Filter which entities the scorecard applies to.

3. In the Rules tab, define the scorecard's rules:

   • Add or remove levels, as well as edit their names.
   • Add rule elements to each level:
     • Title - The rule's title.
     • Identifier - The rule's identifier.
     • Description - The rule's description.
     • Conditions - The rule's conditions.

4. Click Save to create the scorecard.

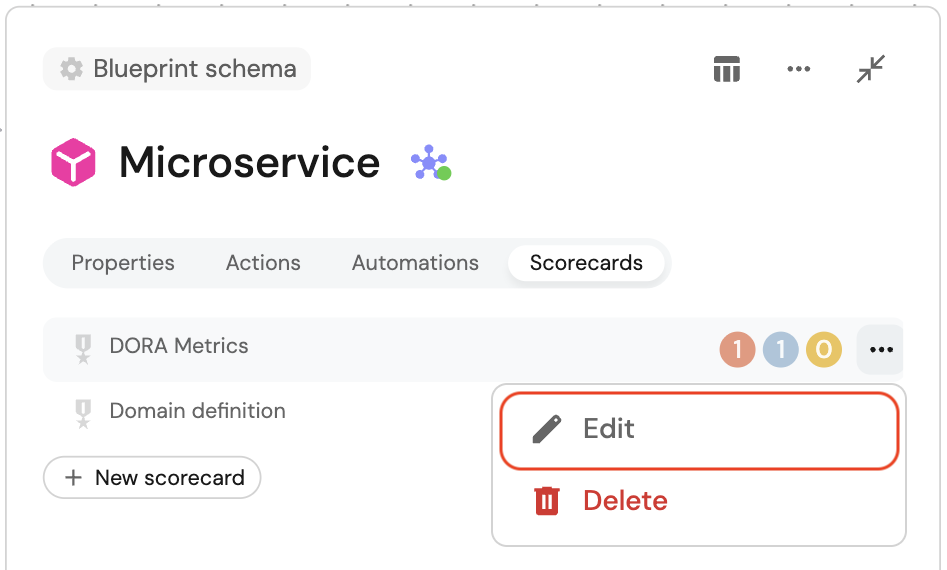

To edit an existing scorecard

1. Click on the ... button in line that represents your scorecard, then choose Edit.



2. Make your changes to the scorecard.

3. Click Save to apply your changes.

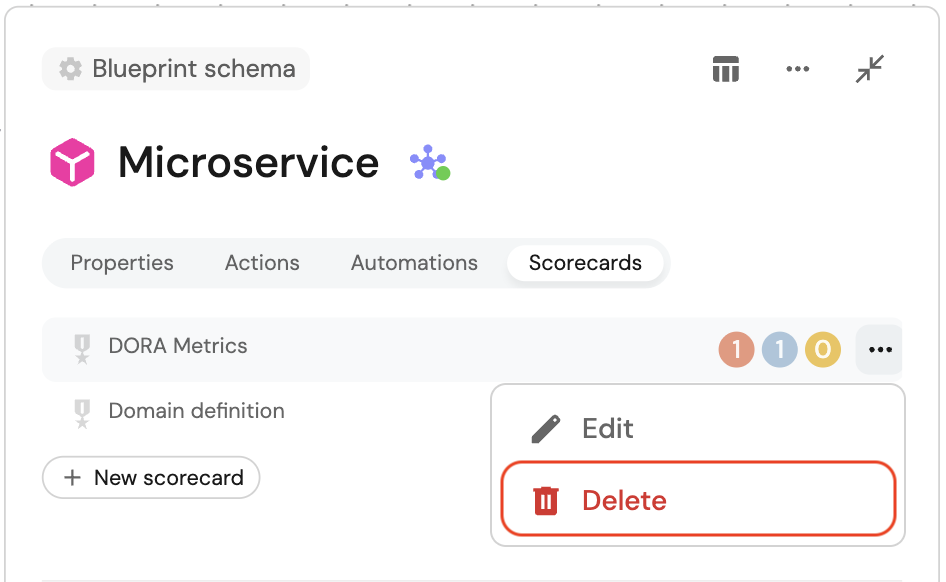

To delete a scorecard:

Irreversible delete

A Scorecard cannot be restored after deletion!

1. Click on the ... button in line that represents your scorecard, then choose Delete.



2. Confirm the deletion in the pop-up window.

Scorecard JSON structure

Instead of using the form, you can also create or edit scorecards in JSON format.
Click on the {...} Edit JSON button in the top right corner of the scorecard creation or editing form.

Below is an example of a scorecard in JSON format:

Ownership scorecard example (click to expand)

{
  "identifier": "Ownership",
  "title": "Ownership",
  "rules": [
    {
      "identifier": "hasSlackChannel",
      "title": "Has Slack Channel",
      "level": "Silver",
      "query": {
        "combinator": "and",
        "conditions": [
          {
            "operator": "isNotEmpty",
              "property": "slackChannel"
          }
        ]
      }
    },
    {
      "identifier": "hasTeam",
      "title": "Has Team",
      "level": "Bronze",
      "query": {
        "combinator": "and",
        "conditions": [
          {
            "operator": "isNotEmpty",
            "property": "$team"
          }
        ]
      }
    }
  ]
}

API

Access token required

Remember that an access token is necessary in order to make API requests. If you need to generate a new token, refer to Getting an API token.

Create scorecards

In order to create a scorecard from the API, you will make a POST request to the following URL: https://api.port.io/v1/blueprints/{blueprint_identifier}/entities.

Here are some request examples that will create the Scorecard of Ownership on the microservice Blueprint:

Python

Create scorecards python example (click to expand)

# Dependencies to install:
# $ python -m pip install requests

# the access_token variable should already have the token from previous examples
import requests

API_URL = 'https://api.getport.io/v1'

blueprint_name = '_scorecard'

scorecard_definition = {
    'identifier': 'Ownership',
    'title': 'Ownership',
    'properties': {
        'blueprint': 'blueprint_identifier', # The blueprint the scorecard belongs to
        'rules': [
            {
                'identifier': 'hasSlackChannel',
                'title': 'Has Slack Channel',
                'level': 'Silver',
                'query': {
                    'combinator': 'and',
                    'conditions': [
                        {'operator': 'isNotEmpty', 'property': 'slackChannel'}
                    ],
                },
            },
            {
                'identifier': 'hasTeam',
                'title': 'Has Team',
                'level': 'Bronze',
                'query': {
                    'combinator': 'and',
                    'conditions': [
                        {'operator': 'isNotEmpty', 'property': '$team'}
                    ],
                },
            },
        ],
    }
}

headers = { 'Authorization': f'Bearer {access_token}'}

response = requests.post(f'{API_URL}/blueprints/{blueprint_name}/entities', json=scorecard_definition, headers=headers,)

Javascript

Create scorecards javaScript example (click to expand)

// Dependencies to install:
// $ npm install axios --save

// the accessToken variable should already have the token from previous examples

const axios = require("axios").default;

const API_URL = "https://api.getport.io/v1";

const blueprintName = "_scorecard";

const scorecard_definition =  {
        identifier: "Ownership",
        title: "Ownership",
        properties: {
          blueprint: "blueprint_identifier", // The blueprint the scorecard belongs to
          rules: [
              {
                  identifier: "hasSlackChannel",
                  title: "Has Slack Channel",
                  level: "Bronze",
                  query: {
                      combinator: "and",
                      conditions: [
                          {
                              operator: "isNotEmpty",
                              property: "slackChannel",
                          },
                      ],
                  },
              },
              {
                  identifier: "hasTeam",
                  title: "Has Team",
                  level: "Silver",
                  query: {
                      combinator: "and",
                      conditions: [
                          {
                              operator: "isNotEmpty",
                              property: "$team",
                          },
                      ],
                  },
              },
          ],
        }
    };

const config = {
    headers: {
        Authorization: `Bearer ${accessToken}`,
    },
};

const response = await axios.post(
    `${API_URL}/blueprints/${blueprintName}/entities`,
    scorecard_definition,
    config
);

After creating the scorecards, you will see a new tab in the profile entity page of each of your blueprint's entities, showing the various scorecards levels.

For example, we can create the entity below:

{
    "identifier": "cart-service",
    "title": "Cart Service",
    "icon": "Microservice",
    "properties": {
        "slackChannel": "https://slack.com",
        "repoUrl": "https://github.com"
    },
    "relations": {}
}

And then look at the specific page of this entity, on the scorecards tab.

We can see that the hasSlackChannel rule passed because we provided one to that entity, while the hasTeam failed because we didn't provide any team.

Therefore the level of the entity is Bronze because it passed all the rules in the Bronze level (hasSlackChannel).

---

Update scorecards

To update a scorecard you can use two different URLs:

1. Update a single Scorecard using the URL https://api.port.io/v1/blueprints/{blueprint_identifier}/entities/{entity_identifier}. The request body will be the full Scorecard + the wanted changed values
2. Make a PUT request to the URL https://api.port.io/v1/blueprints/{blueprint_identifier}/entities/{entity_identifier}. to multiple scorecards at once

The request body will include the existing body of the Scorecard, after the desired updates to the existing scorecard have been applied.

New identifier on scorecard update

When using the multiple update Scorecards https://api.getport.io/v1/blueprints/{blueprint_identifier}/scorecards PUT request, keep in mind that you will see a new id property. This is used via Port to identify the scorecard in order to be able to update its properties.

---

Delete scorecards

Irreversible delete

A Scorecard cannot be restored after deletion!

• Make an HTTP PUT request and remove it from the array of the scorecards via the URL https://api.getport.io/v1/blueprints/{blueprint_identifier}/scorecards.
• Make an HTTP DELETE request to the URL https://api.port.io/v1/blueprints/{blueprint_identifier}/entities/{entity_identifier} the blueprint_identifier is the identifier of the scorecard's blueprint, and the entity_identifier is the identifier of the scorecard we want to delete.

Using scorecards API

Scorecards can be managed either with the entities API endpoints mentioned above, or by the dedicated Scorecards API endpoints: create, update, delete, etc. Note that if you are extending the scorecards data model you should use the entities endpoints.

Terraform

Create scorecards

In order to create a scorecard from the Terraform provider , you will need to use the port_entity resource.

Here is an example of how to create an Ownership scorecard with the Terraform provider:

Terraform create example (click to expand)

resource "port_scorecard" "ownership" {
  blueprint = "microservice"
  identifier = "Ownership"
  title = "Ownership"
  rules = [
    {
      identifier = "hasSlackChannel"
      title = "Has Slack Channel"
      level = "Silver"
      query = {
        combinator = "and"
        conditions = [
          jsonencode({
            operator = "isNotEmpty"
            property = "slackChannel"
          })
        ]
      }
    },
    {
      identifier = "hasTeam"
      title = "Has Team"
      level = "Bronze"
      query = {
        combinator = "and"
        conditions = [
          jsonencode({
            operator = "isNotEmpty"
            property = "$team"
          })
        ]
      }
    }
  ]
}

---

Update scorecards

In order to update a scorecard with the Terraform provider, you will need to run the terraform apply -target=port_scorecard.<resourceId> command with the updated scorecard resource.

---

Delete Scorecards

Irreversible delete

A Scorecard cannot be restored after deletion!

In order to delete a scorecard using the Terraform provider, use the terraform destroy -target=port_scorecard.<resourceId> command with the scorecard resource you want to delete. (remember that it is also possible to remove the definition of the port_scorecard resource from the .tf file and run terraform apply)

Next steps

• Explore scorecard use-cases and automation use-cases for examples you can implement in your environment.
• Dive into advanced operations on Scorecards with our API ➡️
